PER CAN Library

Standardized framework for CAN communication and system-wide fault management within PER vehicles.

• canpiler/: Jinja2-based Python module for parsing configurations and generating code
• configs/: "Source of Truth" definitions for nodes, buses, and system-wide faults.
• generated/: Auto-generated C files and headers for CAN nodes.
• dbc/: CAN database (DBC) files for external analysis tools.
• schema/: JSON schemas for validating configuration files.

Core Files:

• can_init.c / can_common.h: Bus/peripheral initialization and CAN_init().
• can_rx.c: CAN RX task and the shared can_data instance.
• can_tx.c: CAN TX task and per-peripheral software queues.
• faults_common.c / faults_common.h: System-wide fault management.
• can_library.cmake: CMake integration and node library generation.

Logic

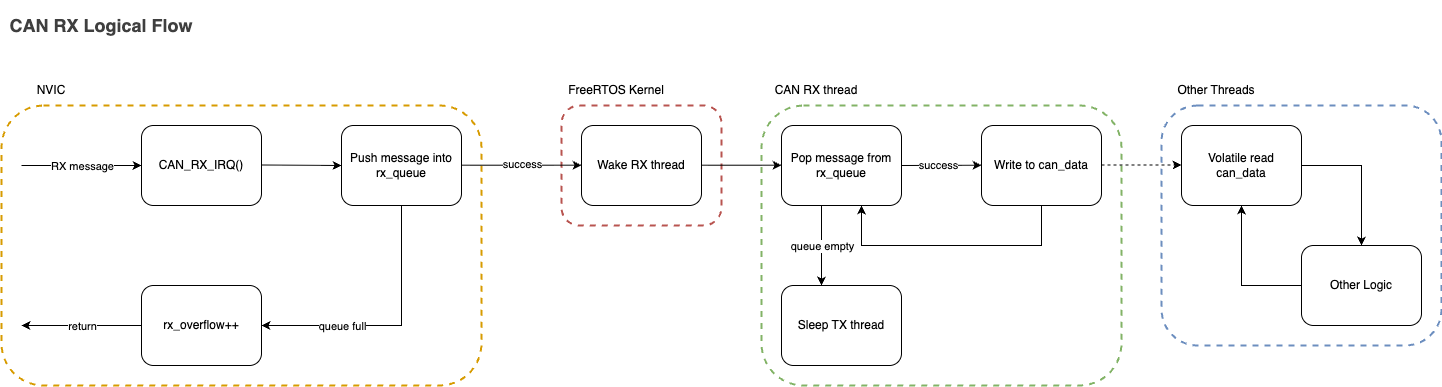

The high-level logic flow of an RX is shown here:

Note

The all RX IRQs push to the same queue rather than having separate queues per peripheral.

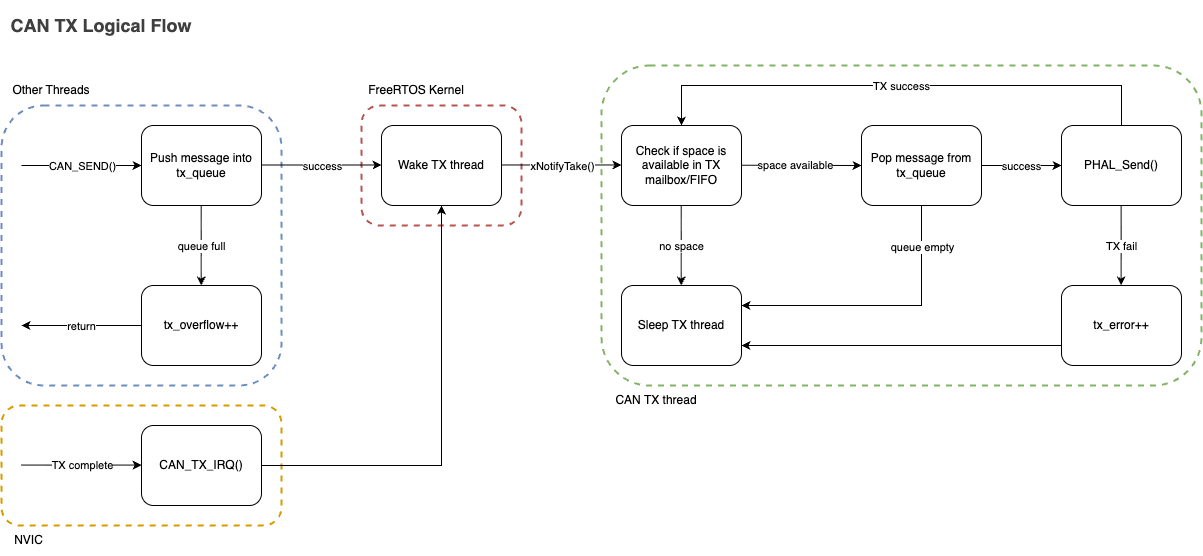

The high-level logic flow of a TX is shown here:

Note

The actual implementation of the CAN TX task manages up to 3 separate hardware peripherals at once, each with its own software queue.

Usage

1. Define your CAN network and global faults in can_library/configs/ using the provided JSON schemas.
   1. Use FDCAN peripherals on G4 and CAN peripherals on F4/F7.
2. Add can_node_<NODE_NAME> to LIBS in your board's add_firmware_component(...) call (must match the uppercase node name from CMake).
3. Include the generated header for your node (e.g. #include "can_library/generated/PDU.h" / #include "can_library/generated/<NODE_NAME>.h") in your main.c.
4. Initialize the CAN library in your main.c with CAN_init().
5. Setup CAN tasks in your main.c using DEFINE_CAN_TASKS() and START_CAN_TASKS().

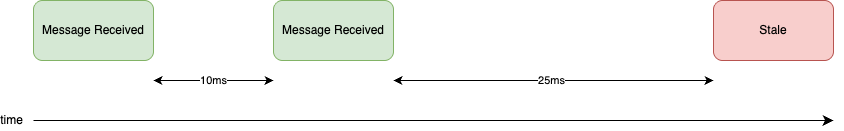

The most recent rx'd data is available in the can_data struct, which is updated by the CAN RX task. Sending CAN messages is done via the generated CAN_SEND_<message_name>() functions, which enqueue messages to be sent by the CAN TX task.

Fault System

The faults_common module implements the FIDR (Fault Isolation, Detection, and Recovery) system. It manages the lifecycle of system-wide faults using a robust Finite State Machine (FSM) to prevent flickering and ensure deterministic fault handling.

Fault FSM Diagram

Usage:

• update_fault(fault_id_t fault_id, float value): Called by the owner node to feed sensor/status data into the FSM.
• fault_library_periodic(): Tally active faults and call tx_fault_sync(), which broadcasts the node-specific <node>_fault_sync CAN message.
• is_latched(fault_id_t fault_id): Check if a specific fault is active.
• is_clear(fault_id_t fault_id): Check if a specific fault is clear.

Note

Each node is assigned a specific range of faults (MY_FAULT_START to MY_FAULT_END). Only the "owner" node can update the state of these faults, ensuring a single source of truth.
